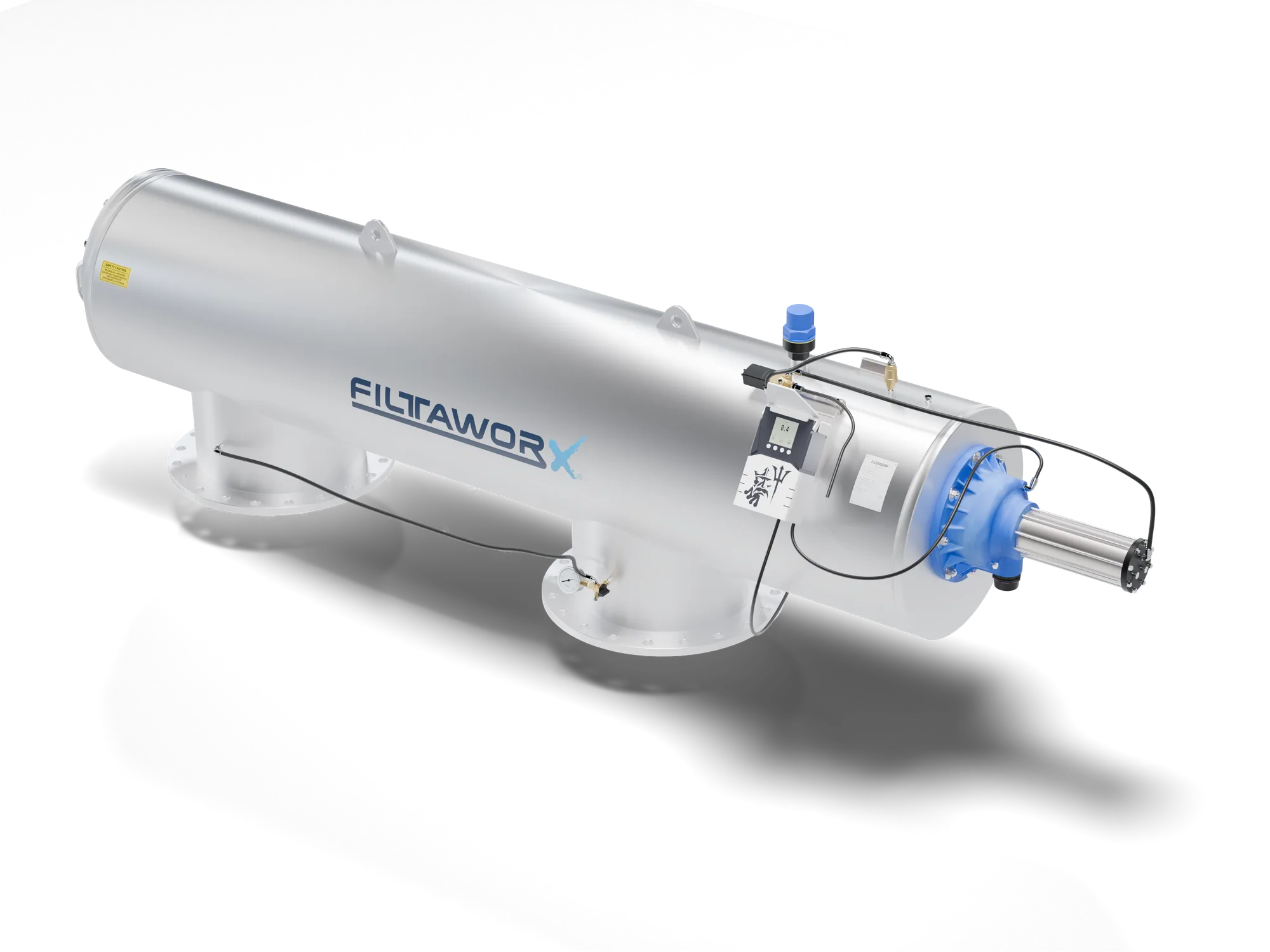

Filtaworx FW450
Automatic Self Cleaning Water Filter
Large piston-driven automatic filter. DN450. Flow rate 1,400 m³/h. Hydraulic drive.
Key Specifications
Filter Sizes
DN450
Flow Range
1,400 m³/h
Drive Type
Hydraulic
Filter Area
15,950 cm²
Product Overview
The Filtaworx FW450 is a large-format automatic self-cleaning screen filter with 15,950 cm² of filtration area.
Filters in this range are also known as automatic backwash filters — the screen is cleaned in place by an automatic backwash cycle while flow continues uninterrupted.
The cleaning cycle, what triggers it and what it costs in water and time are set out in how automatic self-cleaning filters work.
Features & Advantages
Specifications
| Specification | Value |
|---|---|
| drive Type | Hydraulic |
| filter Sizes | DN450 |
| flow Rate | 1,400 m³/h |
| filter Area | 15,950 cm² |
| filtration Degree | 30, 50, 80, 100, 120, 150, 200, 300, 400, 800 µm |
| operating Pressure | 2.0–10 bar |
| max Temperature | 65 °C |
| rinse Cycle | 15–17 seconds |
Other screen sizes available on request — the grades above are the standard range.
Data & Weights
| Model | DN | Flow rate | Filter area | Weight (Std) | Weight (HP) |
|---|---|---|---|---|---|
| FW450 | DN450 | 1,400 m³/h | 15,950 cm² | 420 kg | 510 kg |
Dimensions
| Dimension | Value |
|---|---|
| Inlet / Outlet | DN450 (18") |
| Body Ø | 556 mm |
| Centre distance | 1,270 mm |
| Body O/A length | 2,531 mm |
| Filtration area | 15,950 cm² |
| Flow rate | 1,400 m³/h (6,164 gpm) |
Shipping & weights
| Item | Value |
|---|---|
| Packed dimensions (L × W × H) | Crate |
| Shipping volume | — |
| Weight — standard | 420 kg (925 lb) |
| Weight — high pressure | 510 kg (1,125 lb) |
Typical Applications
