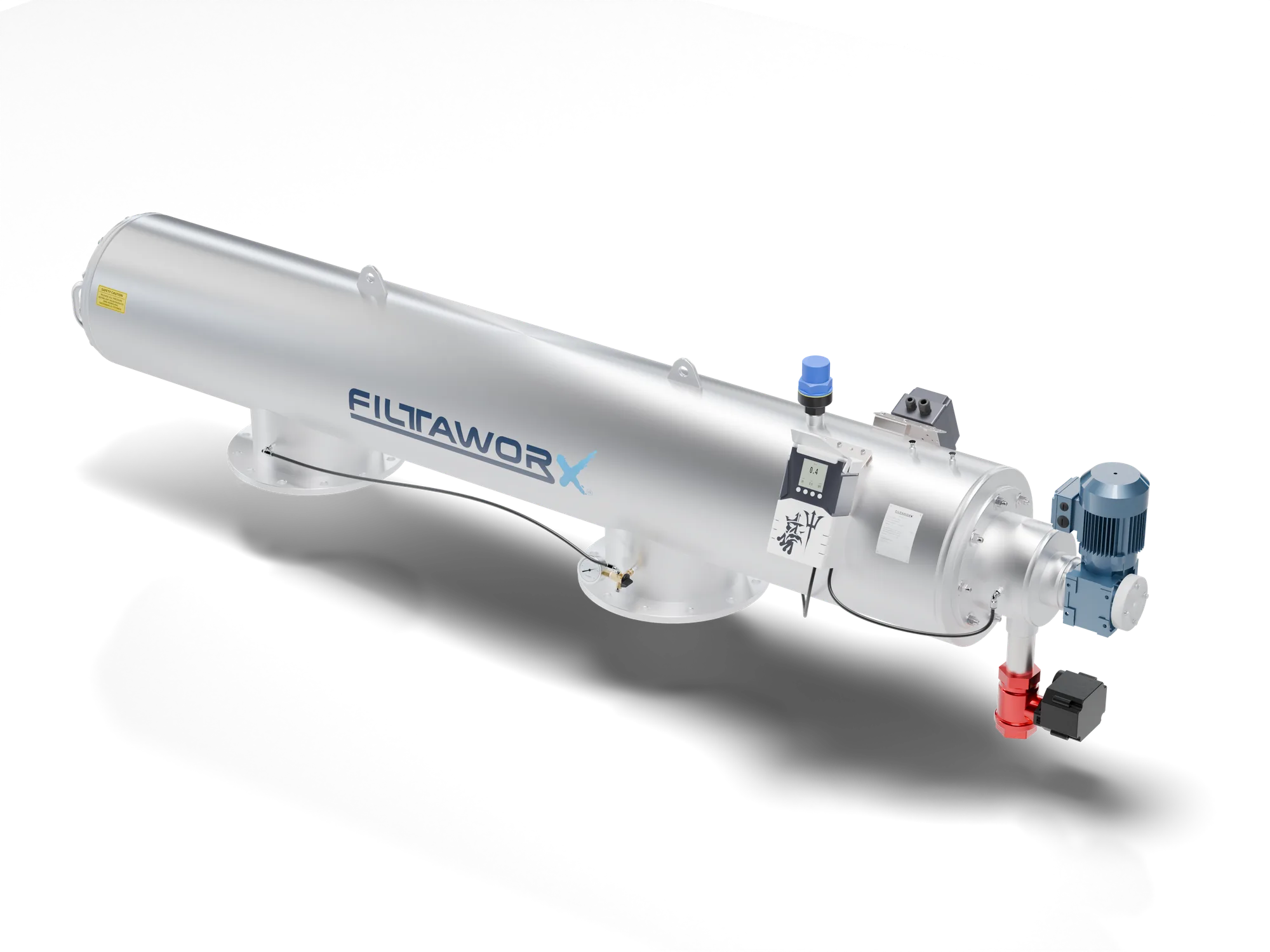

Filtaworx FED350
Electric Drive Self Cleaning Water Filter
Electric motor drive automatic filter. DN350. Flow rate 900 m³/h.
Key Specifications
Filter Sizes
DN350
Flow Range
900 m³/h
Drive Type
Electric
Filter Area
12,170 cm²
Product Overview
The Filtaworx FED350 uses an electric gear motor for precise backwash control.
Filters in this range are also known as automatic backwash filters — the screen is cleaned in place by an automatic backwash cycle while flow continues uninterrupted.
The cleaning cycle, what triggers it and what it costs in water and time are set out in how automatic self-cleaning filters work.
Features & Advantages
Electric Gear Motor Drive
Precise Backwash Control
Self-Reversing Drive Shaft
Suction Nozzle Cleaning
Wide Pressure Range: 0.5-16 bar
PLC Controller Integration
Specifications
| Specification | Value |
|---|---|
| drive Type | Electric |
| filter Sizes | DN350 |
| flow Rate | 900 m³/h |
| filter Area | 12,170 cm² |
| filtration Degree | 30, 50, 80, 100, 120, 150, 200, 300, 400, 800 µm |
| operating Pressure | 0.5–16 bar |
| max Temperature | 65 °C |
| rinse Cycle | 15–17 seconds |
Other screen sizes available on request — the grades above are the standard range.
Data & Weights
| Model | DN | Flow rate | Filter area | Weight (Std) | Weight (HP) |
|---|---|---|---|---|---|
| FED350 | DN350 | 900 m³/h | 12,170 cm² | 285 kg | 595 kg (full) |
Dimensions
| Dimension | Value |
|---|---|
| Inlet / Outlet | DN350 (14") |
| Body Ø | 406 mm |
| Centre distance | 1,270 mm |
| Body O/A length | 2,531 mm |
| Filtration area | 12,170 cm² |
| Flow rate | 900 m³/h (3,963 gpm) |
Shipping & weights
| Item | Value |
|---|---|
| Packed dimensions (L × W × H) | 340 × 63 × 83 cm |
| Shipping volume | 1.3 m³ |
| Weight — standard | 290 kg (640 lb) |
| Weight — high pressure | 310 kg (685 lb) |
Documentation & Downloads
Typical Applications
Ready to specify this filter?
Our engineers can confirm sizing, connection type, screen grade, and controller options for your exact application. Response within 1 business day.
