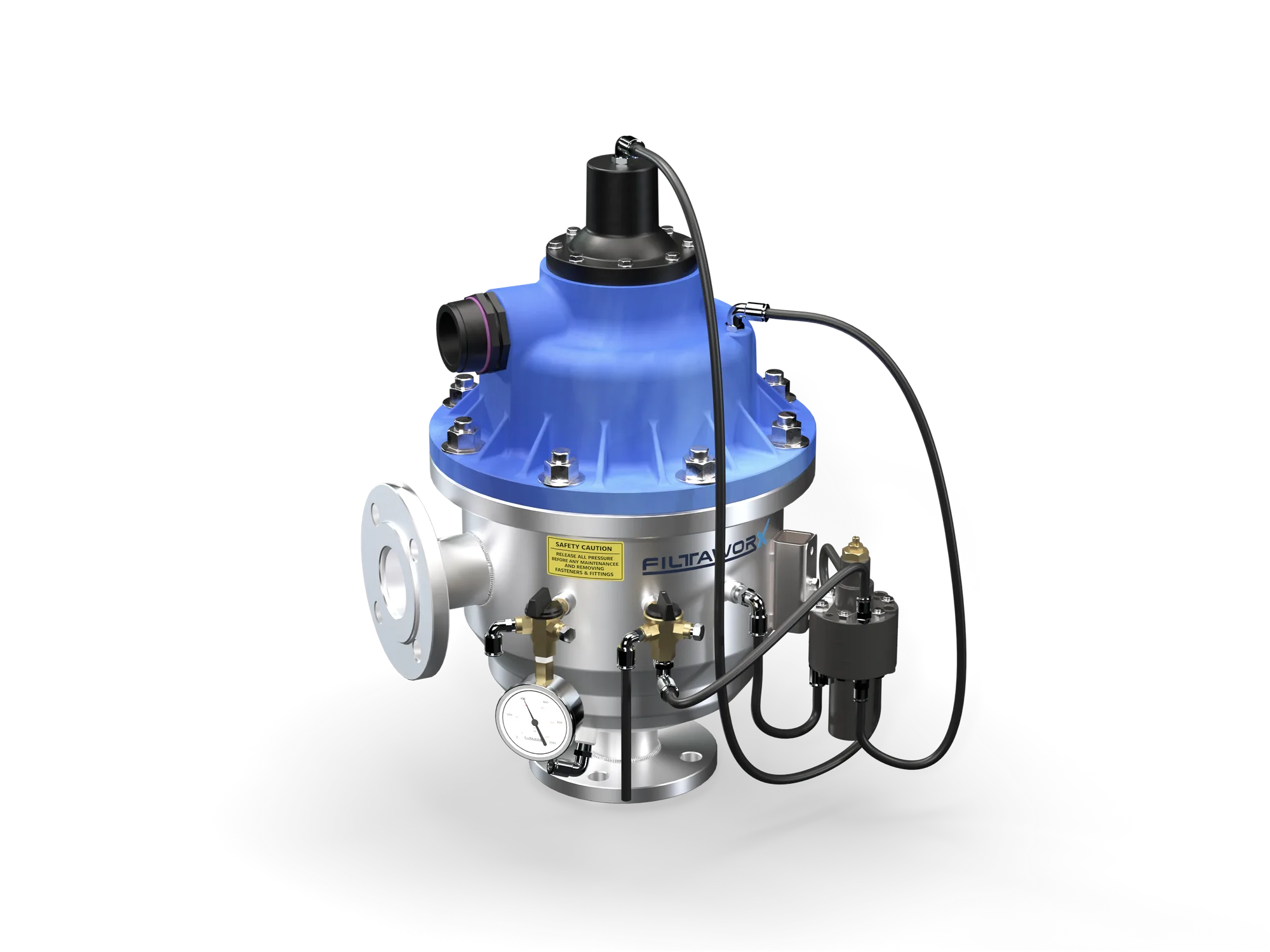

Filtaworx FW050
Automatic Self Cleaning Water Filter
Compact automatic filter. DN50. Flow rate 25 m³/h. Hydraulic drive.
Key Specifications
Filter Sizes
DN50
Flow Range
25 m³/h
Drive Type
Hydraulic
Filter Area
1,220 cm²
Product Overview
The Filtaworx FW050 is a compact automatic self-cleaning screen filter powered by system water pressure.
Filters in this range are also known as automatic backwash filters — the screen is cleaned in place by an automatic backwash cycle while flow continues uninterrupted.
The cleaning cycle, what triggers it and what it costs in water and time are set out in how automatic self-cleaning filters work.
Features & Advantages
Specifications
| Specification | Value |
|---|---|
| drive Type | Hydraulic |
| filter Sizes | DN50 |
| flow Rate | 25 m³/h |
| filter Area | 1,220 cm² |
| filtration Degree | 50, 80, 100, 120, 150, 200, 300, 400, 800 µm |
| operating Pressure | 2.0–10 bar |
| max Temperature | 65 °C |
| rinse Cycle | 5–7 seconds |
Other screen sizes available on request — the grades above are the standard range.
Data & Weights
| Model | DN | Flow rate | Filter area | Weight (Std) | Weight (HP) |
|---|---|---|---|---|---|
| FW050 | DN50 | 25 m³/h | 1,220 cm² | 25 kg | 38 kg |
Dimensions
| Dimension | Value |
|---|---|
| Inlet / Outlet | DN50 (2") |
| Body Ø | 273 mm |
| Centre distance | — |
| Body O/A length | 298 mm |
| Filtration area | 1,220 cm² |
| Flow rate | 25 m³/h (110 gpm) |
Shipping & weights
| Item | Value |
|---|---|
| Packed dimensions (L × W × H) | 71 × 52 × 57 cm |
| Shipping volume | 0.21 m³ |
| Weight — standard | 25 kg (55 lb) |
| Weight — high pressure | 38 kg (84 lb) |
