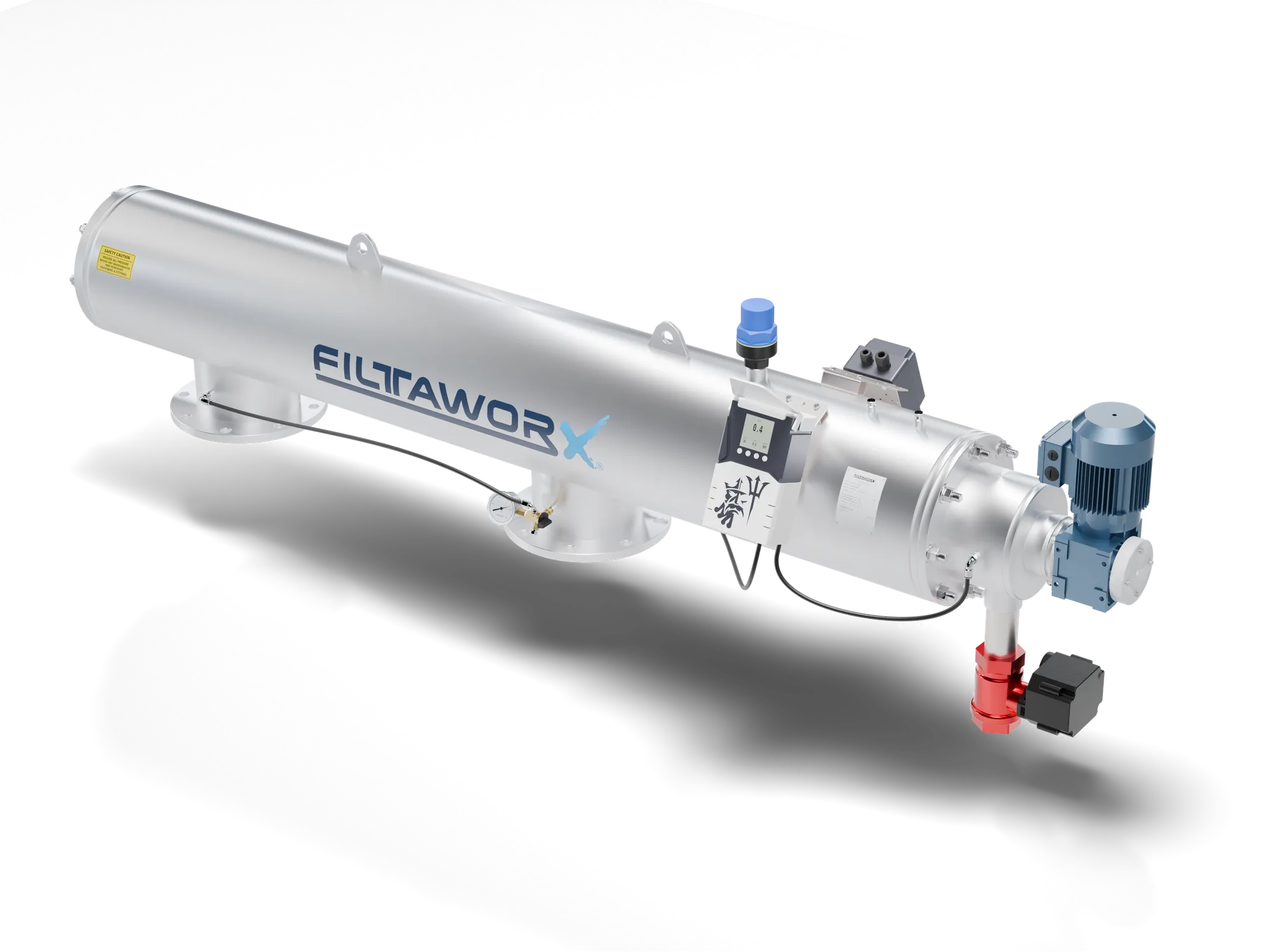

Filtaworx FED200
Electric Drive Self Cleaning Water Filter
Electric motor drive automatic filter. DN200. Flow rate 320 m³/h.
Key Specifications
Filter Sizes
DN200
Flow Range
320 m³/h
Drive Type
Electric
Filter Area
8,115 cm²
Product Overview
The Filtaworx FED200 uses an electric gear motor for precise backwash control.
Filters in this range are also known as automatic backwash filters — the screen is cleaned in place by an automatic backwash cycle while flow continues uninterrupted.
The cleaning cycle, what triggers it and what it costs in water and time are set out in how automatic self-cleaning filters work.
Features & Advantages
Electric Gear Motor Drive
Precise Backwash Control
Self-Reversing Drive Shaft
Suction Nozzle Cleaning
Wide Pressure Range: 0.5-16 bar
PLC Controller Integration
Specifications
| Specification | Value |
|---|---|
| drive Type | Electric |
| filter Sizes | DN200 |
| flow Rate | 320 m³/h |
| filter Area | 8,115 cm² |
| filtration Degree | 30, 50, 80, 100, 120, 150, 200, 300, 400, 800 µm |
| operating Pressure | 0.5–16 bar |
| max Temperature | 65 °C |
| rinse Cycle | 15–17 seconds |
Other screen sizes available on request — the grades above are the standard range.
Data & Weights
| Model | DN | Flow rate | Filter area | Weight (Std) | Weight (HP) |
|---|---|---|---|---|---|
| FED200 | DN200 | 320 m³/h | 8,115 cm² | 130 kg | 320 kg (full) |
Dimensions
| Dimension | Value |
|---|---|
| Inlet / Outlet | DN200 (8") |
| Body Ø | 325 mm |
| Centre distance | 900 mm |
| Body O/A length | 2,050 mm |
| Filtration area | 8,115 cm² |
| Flow rate | 320 m³/h (1,409 gpm) |
Shipping & weights
| Item | Value |
|---|---|
| Packed dimensions (L × W × H) | 280 × 55 × 76 cm |
| Shipping volume | 1.2 m³ |
| Weight — standard | 135 kg (300 lb) |
| Weight — high pressure | 170 kg (375 lb) |
