Filtration Level
50 to 800 microns
Flow Range
40 -1400m3/h
Connection
Flanged connections. Varying standards available upon request
Material
SS304 grade as standard. Other grades available upon request

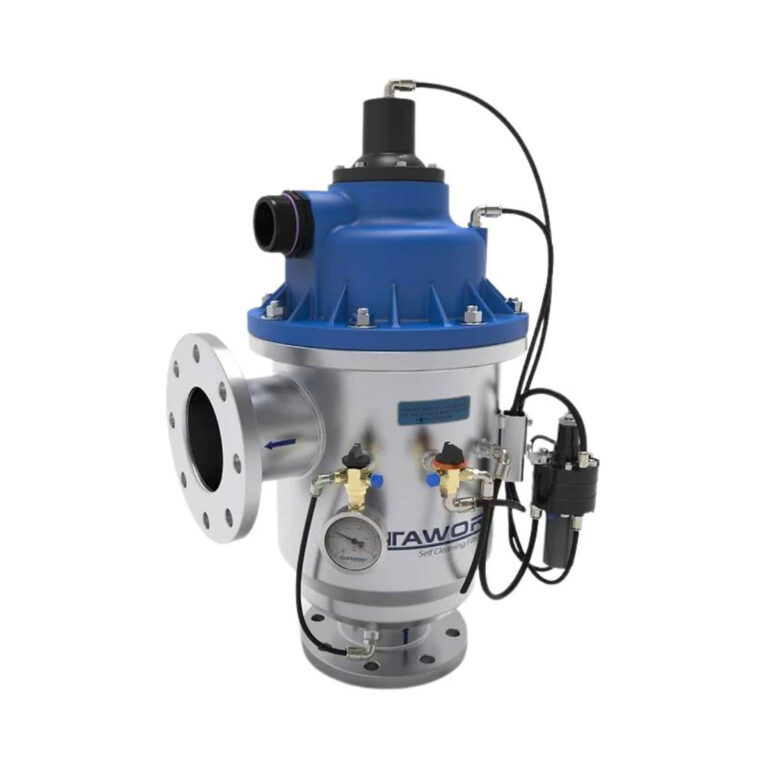

The Filtaworx range of inline piston water filters are available in sizes ranging from 100 to 450mm. Designed and built in Australia using the latest available technologies Filtaworx filters represent one of the most technically innovative self-cleaning filters available. Combining proven high performance, reliability and economy into a compact robust design Filtaworx inline filters are uniquely positioned to service an extensive range of filtration needs.
Backwash initiated via differential pressure and/or timer
No downtime during backwash cycle
Fully self-sufficient (hydraulic models) avaialble
Corrosion-Resistant Design Stainless steel body as standard.
50–800 µm, easy on-site changeover
| Specification | Value |
|---|---|
| Inlet/Outlet Size | 100–450 mm |
| Flow Rate | 40–1400 m³/hr |
| Pressure Rating | PN10 (PN16 optional) |
| Filtration Area | 5600–15950 cm² |

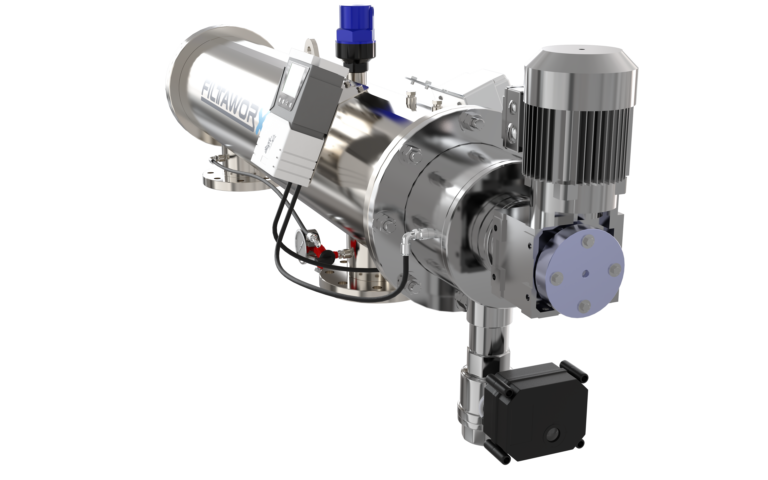

| Control Type | Hydraulic / Electric |
| Max Temp | 65°C |
| Cleaning Trigger | Pressure differential preset at 50Kpa. Optional Timer |
| Backflush Duration | 5–15 seconds |
| Certification | ISO 9001 |
| Dimension | Value |
|---|---|
| Inlet/Outlet Size | Inlet/Outlet Size |
| Flow Rate | 40–1400 m³/hr |
| Filtration Area | 5600–15950 cm² |
Agriculture & Irrigation
Cooling Towers
Town Water Supply
